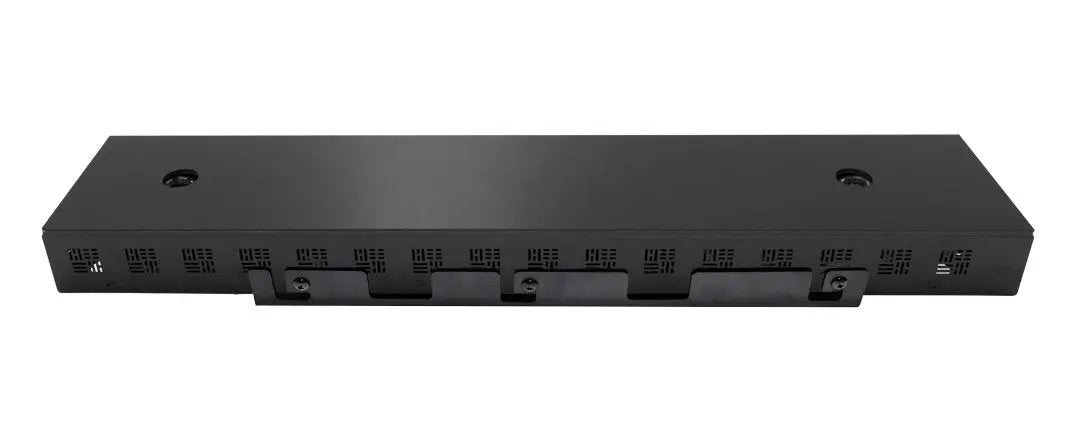

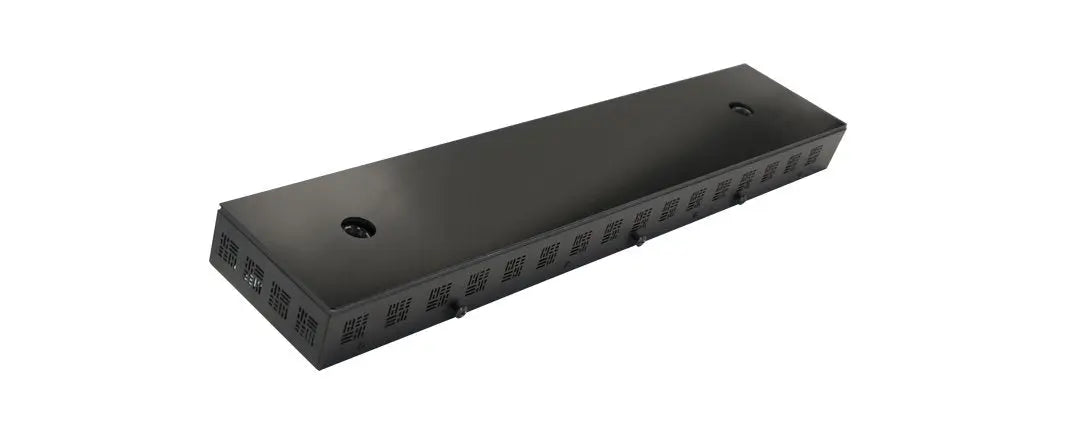

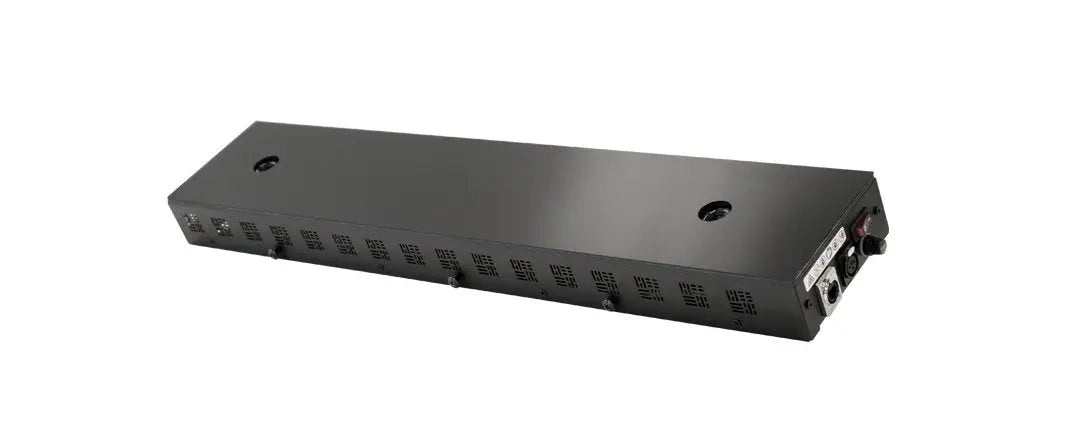

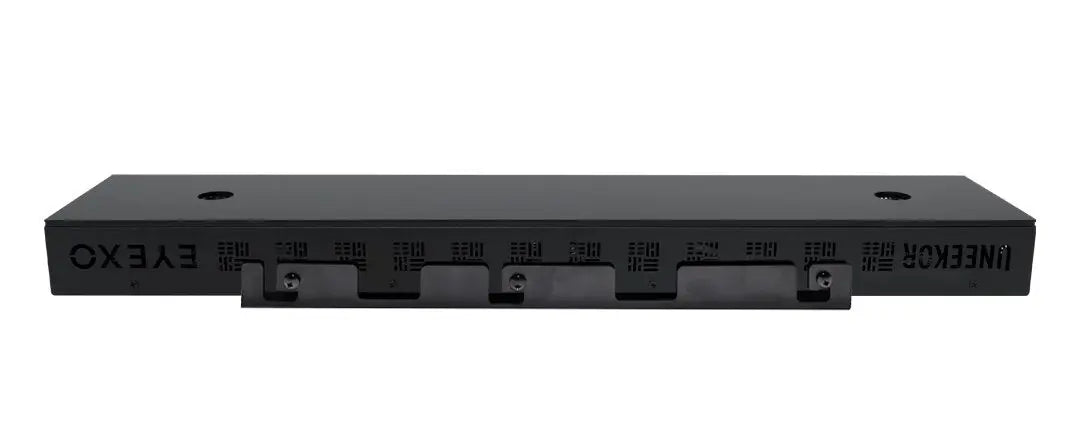

EYEXO VIEW
Overhead type, super speed camera-based golf launch monitor.

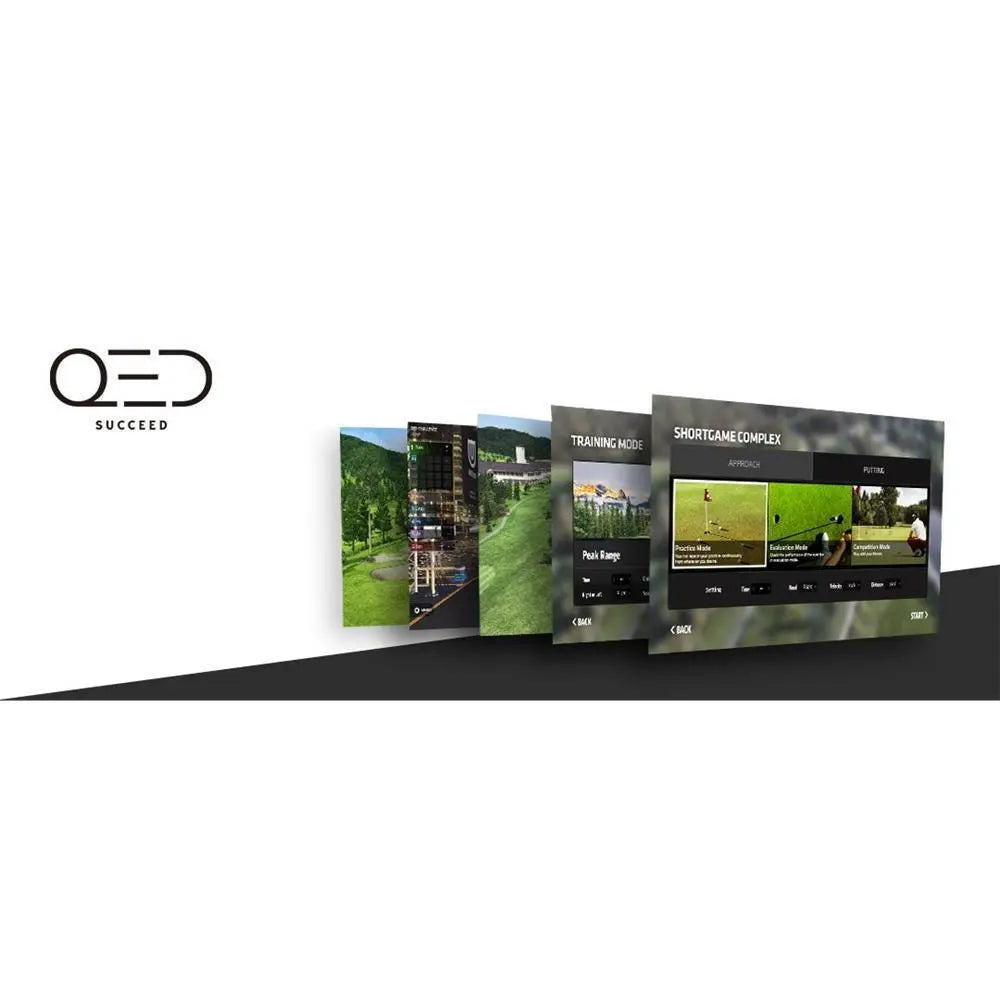

Fully integrated with QED Refine, Succeed, E6, TCG, Creative Golf.
You may have a golf simulator, but are you really using it to maximize your investment?
EYEXO Launch Monitor is developed for your goals and ambition.
Here is why.
ONE
EYE non-marking ball technology allows you to play, practice, and train with any ball you choose.
TWO
EYEXO is all inclusive for the most accurate club data measured in real time.
The core of the non-marking ball technology enhances reality and accuracy for indoor golf simulation. With the non-marking ball technology at work, you are many steps closer to a more realistic golf environment.
Whether you’d like to work on hitting longer drives, more accurate iron shots, better putts, or everything together, a precise and speedy launch monitor can help you make it a reality. With precise ball analytics and a full range of club data you can make calculated decisions and educated adjustments for speedy and steady improvement.
EYEXO VIEW Data Output
Ball Data:
• Back Spin
• Side Spin
• Total Spin
• Spin Axis
• Ball Impact on Club Face
*Ball data: Dimple read
Club Data:
• Smash Factor
• Club Speed
• Club Path
• Club Face Angle
• Attack Angle
• Club Loft Angle,
• Club Lie Angle,
• Impact Point Vertical
• Impact Point Horizontal
*Club data: Read with reflective stickers
THREE
You can be more consistent with the enhanced Uneekor OPTIXTM technology. on EYEXO.
Enjoy more enhanced Club and Swing OPTIXTM conveniently built in your simulator.
Clubface strike is one of the most important variables in golf consistency. Where on the face you hit the ball affects: launch, spin, spin axis, distance, and club fitting. One way to develop a consistent club face strike is understanding exactly where you hit it. Our Club OPTIXTM allows you to see where you exaclty strike the ball on the face and gives you a visual example of adjustments necessary to improve consistency.
Our newest launch monitor model, EYEXO with View software, also features a built-in swing motion analysis quality for yourself or students. It shows premium quality swing motion videos with sophisticated software tools to analyze and communicate on the subject. This feature takes the guess work out of your practice or teaching sessions. It fundamentally leads users to faster improvement and lower scores. The Swing Optix feature comes as an option with the use of premium camera set.
SWING OPTIX (1.690 Euro).
Camera Models: HC-CA016-10UC
Lens: Focal Length: 2.5mm
Aperture: 1.2
Resolution: Up to 1440 x 1080
Frame Rate: Up to 160 fps
Shutter: Global Shutter
Connection: USB3.0
Tripod: 1/4’ compatible
(2) USB3 Cables (2.7m)
(1) USB3 Repeater Cable (5m)
FOUR
Now you can work smarter with PowerU Cloud ervice with EYEXO.
Uneekor is launching an on-line platform, myUneekor.com, to give players the ability to collect and connect with all EYEXO customers or students in one place. The EYEXO View software is optimized to function as a golf data base platform that could sort all data by different clubs, users, and sessions.
You can send out the link of PowerU report through email and/or social media platforms enhancing your chat functions on-line. Imagine having all these tools at your reach. Less hassle, more time to work on your teaching and dial in club fittings. More cloud service options to be released in Fall 2020.
Package Items
• EYEXO Hardware
• Power Cable
• Adapter
• Connector
• USB Ethernet Adapter
• Ethernet Cable
• EYEXO Bracket
• USB-software
• Calibration Chart
• M4 32mm
• M6 15mm
• Reflective stickers
• Special 2-year warranty included
Hardware Specification
• 2 Ultra high speed cameras
• 4 Infrared LED array boards

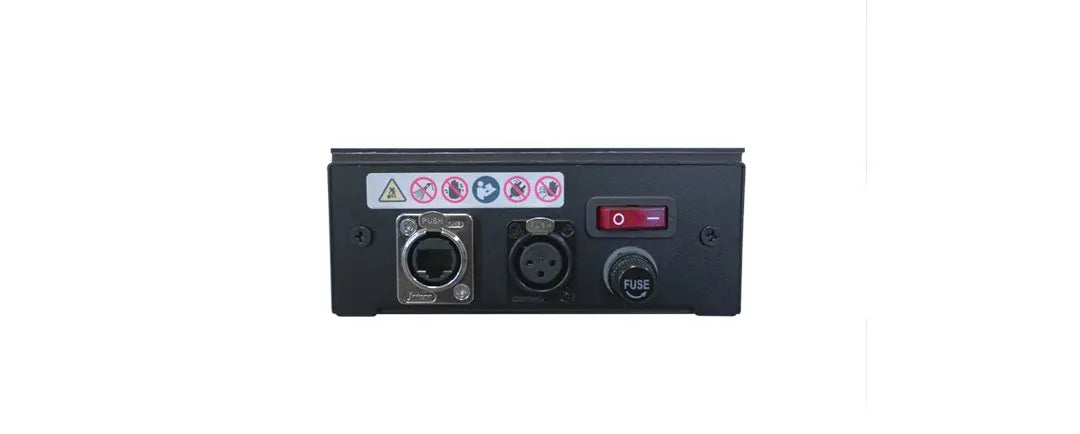

• Gigabit ethernet interface
• Dimensions
79 x 15 x 6.3 cm (without bracket)
79 x 15 x 11 cm (with bracket)
• Weight
4.7 kg (without bracket)
6.5 kg (with bracket)
• External Input: 110/220V
• Output: 19VDC/120W
PC Requirement
• CPU: Minimum Intel i5 8400 or AMD 3600
• RAM: 8GB or higher
• Graphics: Minimum GeForce GTX 1060 or Radeon RX580
• Operating System: Windows 10 (64bit)
• Resolution: Full HD (1920 x 1080)
