Elite Golf Simulator Impact Screens: Technology, Safety, and Quality Comparison
A high-quality golf simulator impact screen serves simultaneously as a hitting surface, projection screen, soundproofing component, and part of the safety concept. This is precisely why its selection should not be based solely on price. The ELITE GSK PRO, ELITE DUAL, and BASIC GSK PRO screens combine a multi-layered construction with different mounting concepts. For private installations, image, noise, and rebound are particularly crucial; for commercial use, documented fire protection, secure fastening, escape routes, and a thorough inspection of the entire installation situation are also required.
What distinguishes a professional impact screen
During a drive, a golf ball hits a relatively large, flexible surface at high speed. This surface must absorb the energy in a controlled manner without dangerously rebounding the ball towards the player. At the same time, it should provide a calm and even image surface for the projector. A single thin cloth can only partially meet these sometimes contradictory requirements.
Professional screens therefore work with functionally separated layers. One layer absorbs a significant part of the ball's braking force, another reduces noise and vibrations, while the visible projection surface is designed for image display. Important is not only the number of layers, but also their interaction with distance, pre-tension, fastening, and the free space behind the screen.

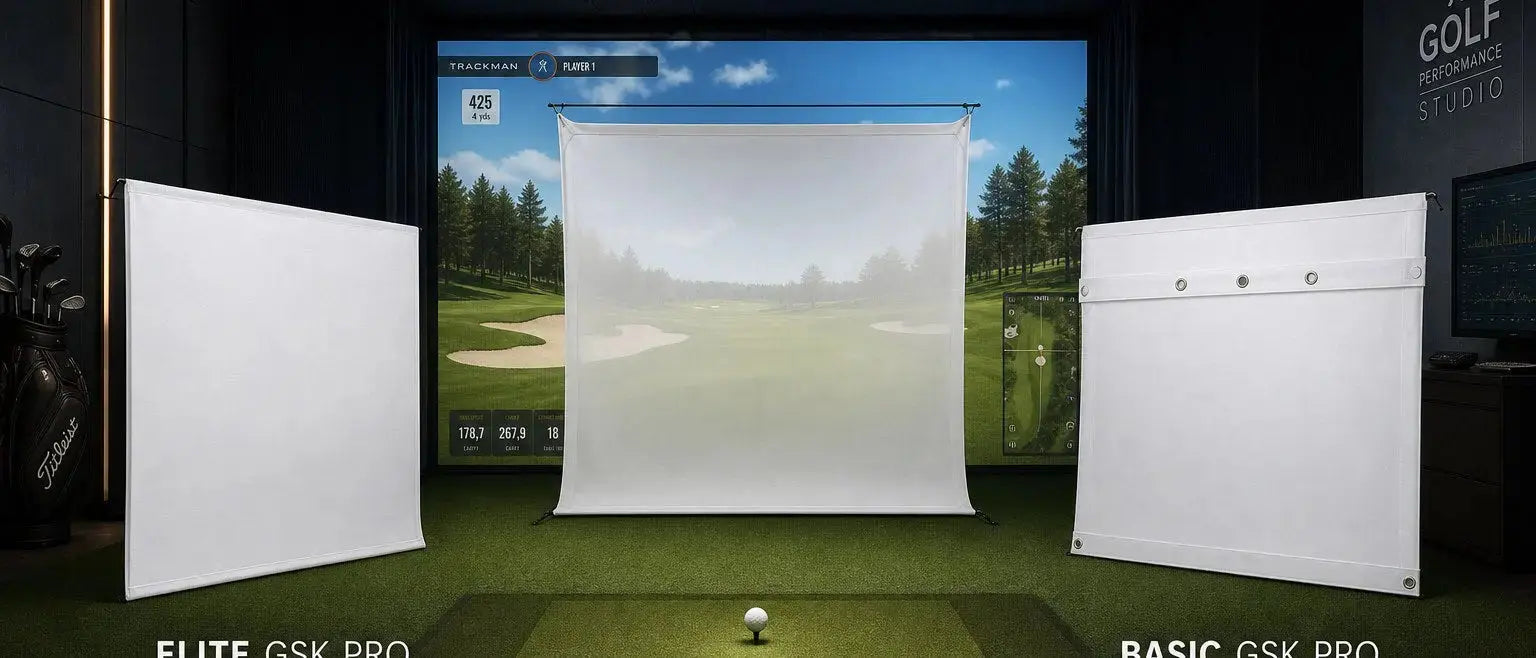

The Elite Screens in technical overview
ELITE GSK PRO: three-layer construction for professional installations
The ELITE GSK PRO – Golf Simulator Impact Screen features a professional three-layer construction. According to the product description, this includes Air Netting as the ball-stopper layer, a noise-reducing Silent Foam layer, and a Silver Screen for projection. The product is designed as a quiet commercial golf impact screen.
This division of tasks is particularly interesting for regularly used simulators: the ball should be slowed down in a controlled manner, the typical hitting sound reduced, and the projected image displayed clearly. For the best result, professional installation and sufficient safety distance from the wall are essential.
ELITE DUAL: six layers for particularly high demands
The ELITE DUAL Screen expands on this principle with two three-layer screen units, resulting in a total of six layers. The main layer consists of Air Netting, Silent Foam, and Silver Screen; in front of it is another three-layer Pro-Screen unit. According to the product description, this construction aims for even better image quality and optimized bounce behavior.
The DUAL Screen is thus the obvious choice when image quality, noise reduction, and controlled ball behavior are particularly important – for example, in a premium simulator room or for intensive commercial use. However, more material does not replace correct planning: even a six-layer construction must not be mounted directly in front of a hard wall or stretched unevenly.
BASIC GSK PRO: same fabric base, different mounting design
The custom-made BASIC GSK PRO Impact Screen uses the same fabric as the Elite version, according to the product description, but differs in design and fastening. A webbing strap runs around the perimeter; eyelets are located in the corners and approximately every 30 centimeters along the sides. Here, too, Air Netting, Silent Foam, and the projection surface are combined in a three-layer construction.
This version is interesting when an individual size and classic eyelet fastening are required. The regular eyelet grid facilitates the distribution of tensile forces. However, when mounting, the screen should not be stretched drum-tight: a certain amount of give is necessary for the ball's energy to be absorbed.
Why Elite can be superior to inexpensive Temo offerings
A blanket statement that every Elite Screen is better than every Temo product would not be serious without exact model designations, data sheets, and identical testing conditions. Offers can change and differ significantly technologically. However, based on the product information available here, the Elite models have a clear, demonstrable advantage: their functional multi-layer construction and respective mounting concepts are specifically described.
In a fair comparison, buyers from Temo or other providers should ask the same questions:
- How many functional layers does the screen actually consist of?
- Which layer slows the ball and which reduces noise?
- Is the visible surface expressly designed for projections?
- Are there specifications for mounting, safety distance, and permissible use?
- Are technical documents and, if applicable, reliable fire tests available?
- Does a test report refer precisely to the material supplied and its construction?
If an inexpensive competitor can answer these points equivalently and verifiably, it should be judged objectively based on the data. If information is missing, however, one buys with technical uncertainties. The advantage of the Elite product family lies not in a mere brand name, but in clearly distinguishable solutions: three layers for the ELITE GSK PRO, a double three-layer construction for the ELITE DUAL, and a custom-made BASIC version with webbing and regularly arranged eyelets.
Why a very inexpensive impact screen can become costly
With inexpensive screens, often only size and price are compared. However, the crucial factors are the costs over the service life and potential operational interruptions. An unsuitable surface can develop visible impact marks faster, resonate more, produce an uneven projection image, or cause the ball to rebound undesirably. Loud impacts can also quickly become a problem in residential areas, hotels, golf studios, and adjoining business premises.
Particular caution is advised with thin projection screens not explicitly designed as impact screens. A normal screen is no substitute for an impact surface. Likewise, a screen should never be considered the sole safety barrier: side protection, ceiling, floor, tee-off position, room depth, and protection against mis-hits are all part of the overall system.
The sensible purchasing decision is not "What is the cheapest fabric?" but "Which construction permanently meets image, ball, sound, mounting, and safety requirements?"
Fire protection for commercial use
In a commercial facility, it's not enough for a screen to perform well technically. Operators are responsible for guests and employees. The fire protection requirements depend on the country, federal state, type of building, room size, number of visitors, operating permit, and specific installation. A blanket promise that a single screen makes the entire facility "fire-safe" would therefore be incorrect.
Which documents should be checked before ordering
- Test report or classification certificate: The fire class should be substantiated by a verifiable document, for example, according to a officially required standard.
- Exact product assignment: Trade name, material, layer structure, grammage, and, if applicable, color must match the delivered screen.
- Valid installation: A certificate may only apply to specific fastenings, substrates, distances, or material combinations.
- Overall system: Curtains, carpets, acoustic foam, side panels, cables, and decoration must be considered separately.
- Approval by specialists: Fire protection planners, authorities, landlords, insurance companies, or event venues may impose additional requirements.
In Europe, classification according to EN 13501-1 is often used for construction products; in individual projects, national regulations or other evidence may be relevant. Whether this standard applies to the specific screen and its use must be assessed by a qualified expert. The product descriptions of the three selected screens do not contain a specific fire class certificate in the information provided here. Therefore, this should be explicitly requested and checked before a commercial order, rather than assuming conformity.
Fire protection is more than the flammability of the screen
Even a classified material must not obscure escape routes, render emergency signs illegible, or impair sprinklers and smoke detectors. Electrical lines and projectors must be professionally installed, heat sources adequately ventilated, and shut-off options accessible. Additionally, depending on the operation, documented controls, instructions, and regulated handling of damaged components are required.
Which screen suits which project?
- ELITE GSK PRO: for professional three-layer solutions focusing on ball stop, reduced noise, and projection quality.
- ELITE DUAL: for particularly demanding premium or commercial installations, where six layers, image quality, and bounce behavior are central.
- BASIC GSK PRO: for custom-made projects where the three-layer fabric with surrounding webbing and eyelets is to be mounted.
Before making a decision, room dimensions, aspect ratio, projector position, tee-off distance, wall clearance, intensity of use, and local safety requirements should be determined. This way, a good impact screen becomes a technically sound and responsibly planned golf simulator setup.
Frequently Asked Questions
What is the difference between ELITE GSK PRO and ELITE DUAL?
The ELITE GSK PRO has three functional layers made of Air Netting, Silent Foam, and Silver Screen. The ELITE DUAL combines two three-layer screen units, thus having a total of six layers. According to the product description, this is intended to further improve image quality and bounce behavior.
Is an inexpensive impact screen generally unsuitable?
No. Crucial factors are verifiable technical properties, suitability as an impact surface, and safe installation. However, if information on layer construction, ball behavior, fastening, or fire testing is missing, the risk of making a wrong decision is higher.
Does a commercially used golf simulator screen have to be flame-retardant?
This depends on the location, building type, use, and official regulations. Before installation, operators should clarify the required fire classification and its validity for the exact material with a fire protection planner or the competent authority.
Is a fire certificate for the screen sufficient for the entire facility?
No. The proof of a single material does not automatically cover curtains, acoustic material, flooring, wiring, or the specific installation. Fire protection must be assessed for the entire room and operational concept.
How taut should a golf impact screen be mounted?
The screen should be stretched evenly, but not drum-tight. It requires sufficient flexibility and distance from hard surfaces so that it can absorb the ball's energy in a controlled manner. The supplier's mounting instructions and the specific room situation are decisive.
